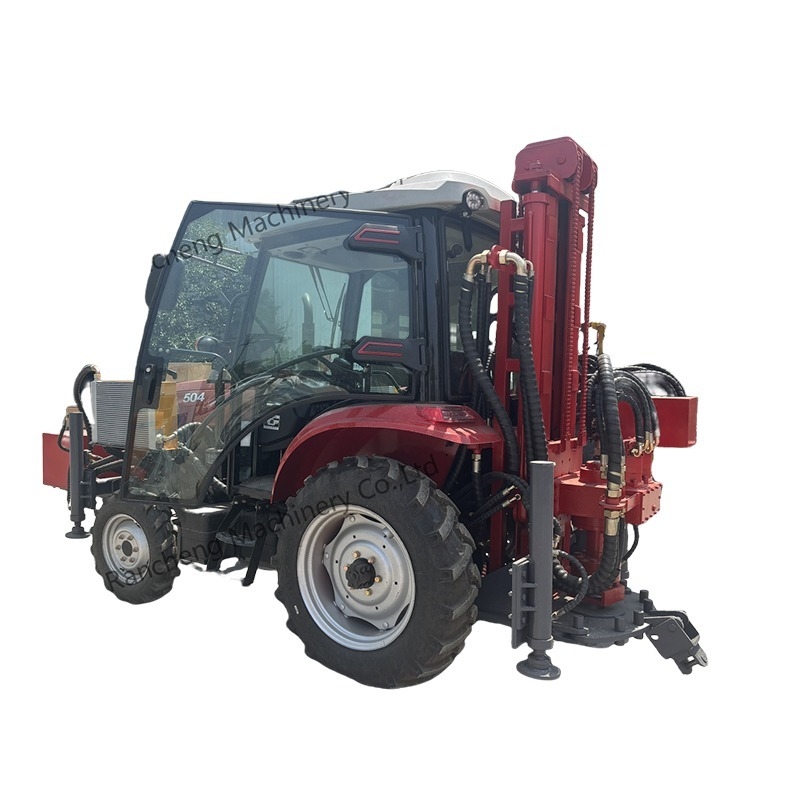

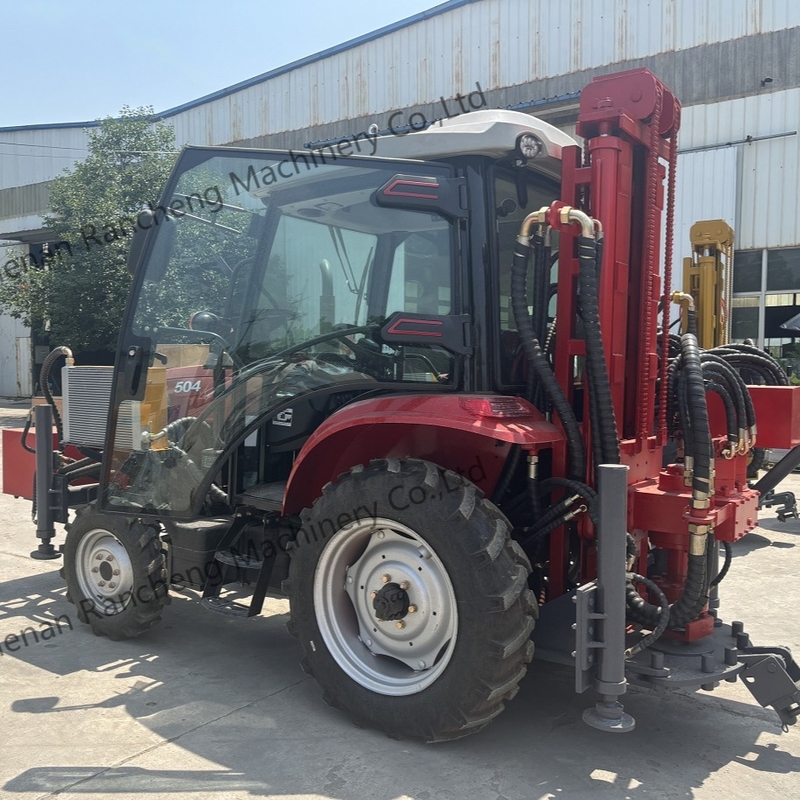

Hydraulic Tractor Mounted Water Well Drilling Machine 3400mm Feed Stroke

RCF300WT tractor-mounted deepwater drilling rig is a deepwater drilling rig independently developed by our company, equipped with high-power pneumatic support and advanced hydraulic technology, with the characteristics of fast drilling speed, high torque and high efficiency.

This drilling rig is designed for a wide range of uses, suitable for geothermal drilling, agricultural irrigation, residential wells and garden wells. The drilling diameter ranges from 70 to 350 mm and the drilling depth ranges from 100 to 300 meters. For light pile foundation projects such as farms or small industrial buildings, its drilling diameter can reach 500 mm and the drilling depth can reach more than 60 meters.

Tractor-Drilling Rig Integration: The drilling rig is integrated directly on the tractor, which can serve as both a transport unit and a drilling unit. It can tow an air compressor and transport drill rods with a simple three-wheeler. Its compact and flexible design enables the machine to be easily moved in fields, rural roads and remote areas.Energy-saving hydraulic power: The rig is driven by a 100-horsepower diesel engine, and all major operations are hydraulically powered. No air compressor is required when lifting the drill rod, which reduces fuel consumption and operating costs.Simple keyboard and wireless operation: Equipped with a button control system and an optional wireless remote control, the operator can choose a comfortable posture to operate the machine. Pulse control allows precise movement.
Labor-saving design: Only two operators are needed to manage the entire drilling process, including rig control and drill rod replacement. Synchronous casing: The system allows the casing to be synchronized during the drilling process, thereby improving well efficiency and stability. The quick-release connector makes casing replacement fast and easy.
