Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Hydraulic DTH drilling rig

3200 N.M rotation torque drilling rig

Surface down-the-hole DTH rig

Lugar de origen:

China

Nombre de la marca:

RanCheng

Certificación:

CE, ISO 9001:2000

Número de modelo:

Las condiciones de los vehículos de las categorías M1 y M2

Éntrenos en contacto con
Petición Una cita
Detalles del producto
Motor:
YUchai YC4A100/70 kW, China II Yuchai YC4DK100/73.5 kW, China III
Volumen diesel del tanque:
70 litros
Profundidad del agujero:
30 metros
Pipa de perforación:
φ76*3000 mm
Diámetro del agujero:
φ90-138 mm
El martillo DTH:
4" y 5"
El par de rotación (máx.):
3200 N.m
Resaltar:

Hydraulic DTH drilling rig

,

3200 N.M rotation torque drilling rig

,

Surface down-the-hole DTH rig

Condiciones de pago y envío
Cantidad de orden mínima
1
Precio
US $18000-22000
Detalles de empaquetado
Envío estándar
Tiempo de entrega
Entre 10 y 15 días hábiles
Condiciones de pago
T/T, Western Union
Capacidad de la fuente
100 juegos por mes
Descripción del producto

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque



Product Overview





The RCZ420T hydraulic down-the-hole drill rig is equipped with a dual-motor rotary drill head and a multi-function adjustable speed valve.



With a torque of up to 3200 Nm, it can meet the stringent drilling requirements of 76 mm drill rod and 138 mm hole diameter.

The 3 m drive length enables it to drill wider and deeper well sections.



With its high-quality construction crawler, piston engine and leveling function, it has excellent climbing ability and all-terrain performance. The 420 model is suitable for the most challenging construction site conditions.



It is capable of drilling vertical wells on slopes to meet various construction needs.


Technical Specifications

Model
RCZ420T
Engine
Yuchai YC4A100/70 kW, China II
Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume
70 L
Weight
5280 kg
Dimension
5420*2308*2500 mm
Hole depth
30 m
Drill pipe
φ76*3000 mm
Hole diameter
φ90-138 mm
DTH hammer
4"/5"
Rotation torque (max.)
3200 N.m
Feed force
20 kN
Pull up force
45 kN
Feed type
Chain/cylinder
Gradient
25°
Track frame osciliation
+/- 10°
Tramming speed
3 km/h





Key Features



The dual motors rotate the drill bit with higher torque and speed, which can meet the drilling needs of 76 mm drill rod and 130 mm drill bit diameter.



High-quality crawler and piston engines provide more reliable performance and better maneuverability, allowing open-pit mining drilling operations to better adapt to complex ground conditions.



The central control panel is easy to use, which improves the efficiency, safety and comfort of drilling operations.



The new leveling function gives the machine stronger climbing ability and all-terrain performance, enabling it to adapt to various construction environments more effectively. The 420 model can also drill vertical holes on slopes to meet various construction needs.



Product Images

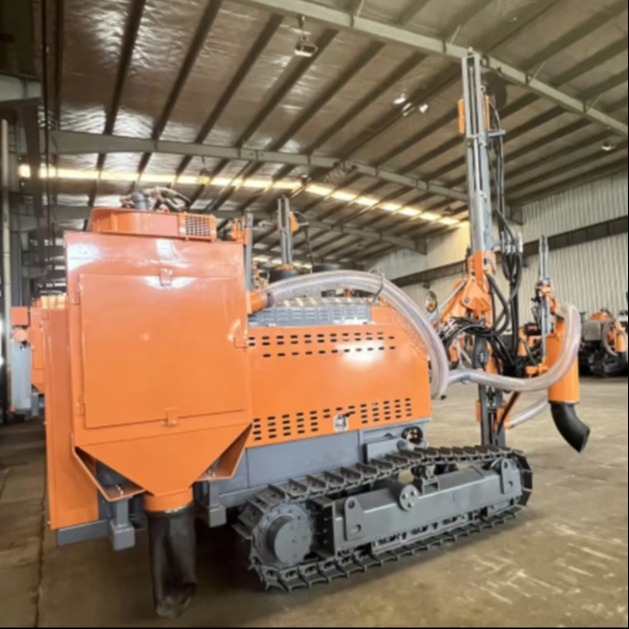

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 0

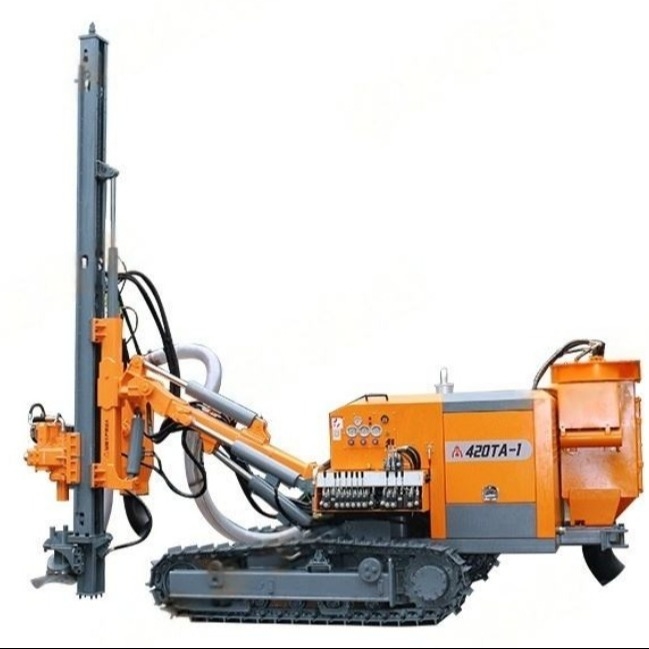

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 1

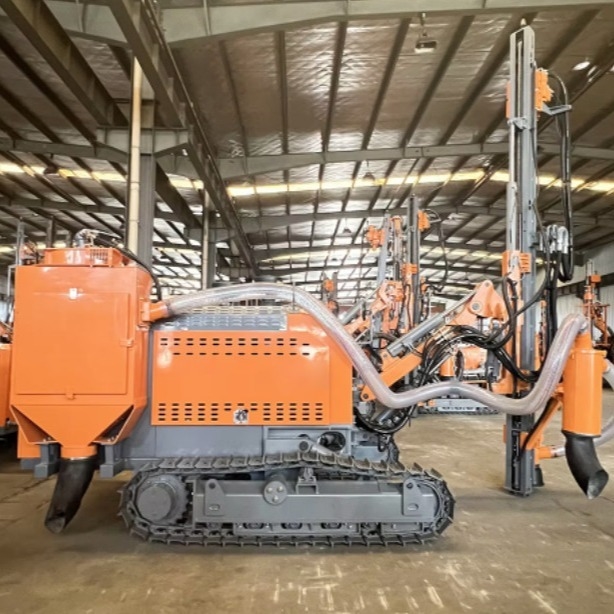

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 2

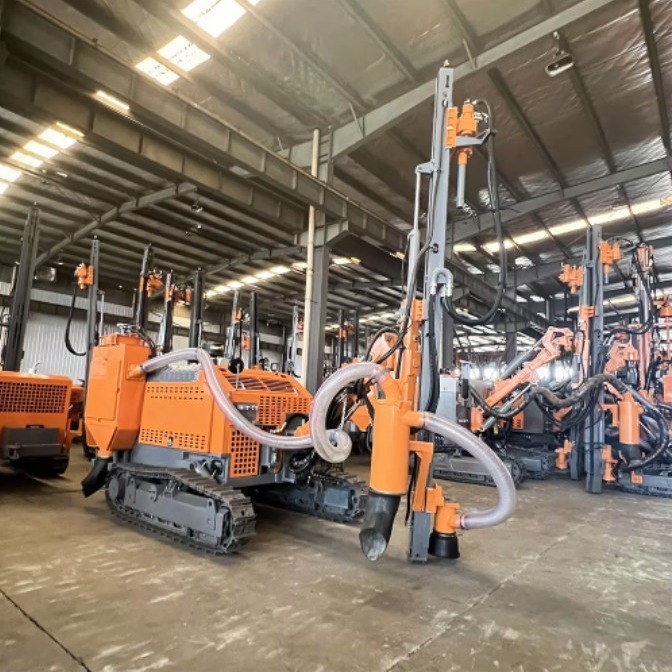

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 3



Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 4
