200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque

small crawler mounted water well drill

portable water well drilling machine with warranty

2000N.M torque water well drill rig

Lugar de origen:

Porcelana

Nombre de la marca:

RanCheng

Certificación:

CE, ISO 9001:2000

Número de modelo:

RCS200C

Éntrenos en contacto con

Petición Una cita

Detalles del producto

Diámetro de perforación:

100 a 300 mm

Torque máximo:

1000-2000n.m

Caminar:

Correa eslabonada montada

Garantía:

1 año

Profundidad de perforación:

100 a 200 metros

Peso:

200-500kg

Potencia del motor diesel:

22 CV / 16,2 kW

dept de perforación:

Entre 80 y 150 m

Motor diesel:

22 CV

Aplicación:

Perforación de pozos de agua

Resaltar:

small crawler mounted water well drill

portable water well drilling machine with warranty

2000N.M torque water well drill rig

Condiciones de pago y envío

Cantidad de orden mínima

Precio

US $ 7000-8000

Detalles de empaquetado

Envío estándar

Tiempo de entrega

10-15 días hábiles

Condiciones de pago

T/t, unión occidental

Capacidad de la fuente

100sets por mes

Productos relacionados

El video

Profundidad máxima 200m RCS200C Rápido de caucho Pequeña máquina de perforación de pozos de agua

Consiga el mejor precio

El video

Máquina de perforación hidráulica de agua para pozos de riego de granjas de 150 metros de profundidad

Consiga el mejor precio

El video

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

Consiga el mejor precio

El video

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Consiga el mejor precio

Éntrenos en contacto con

Contacto ahora

Descripción del producto

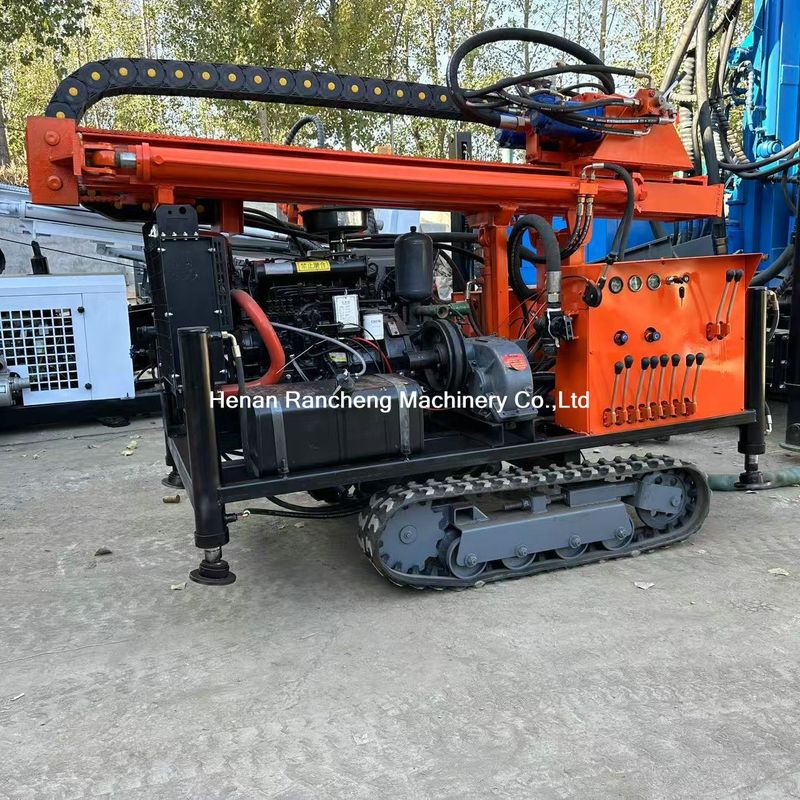

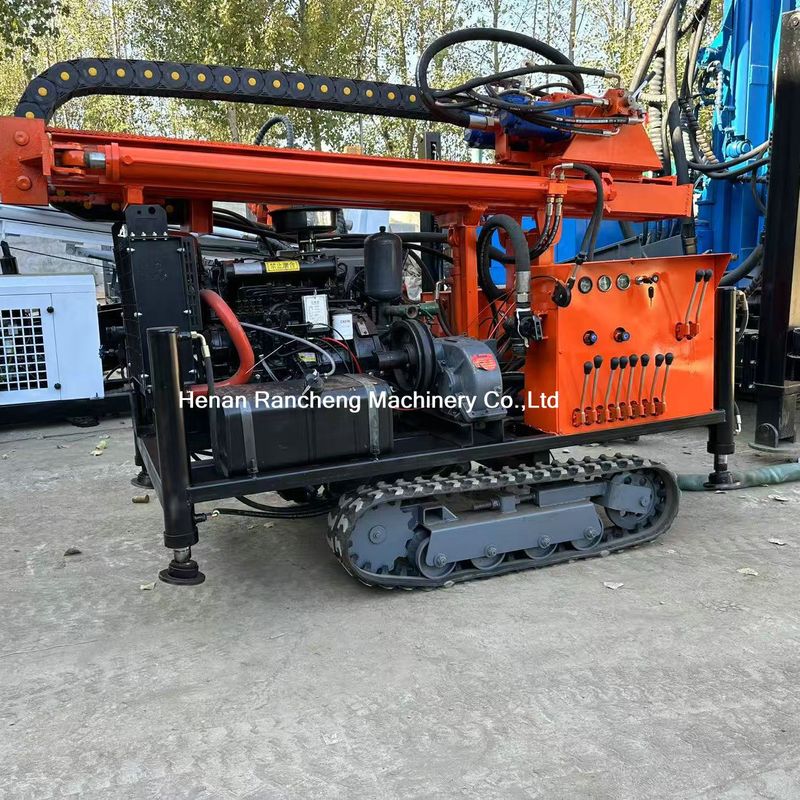

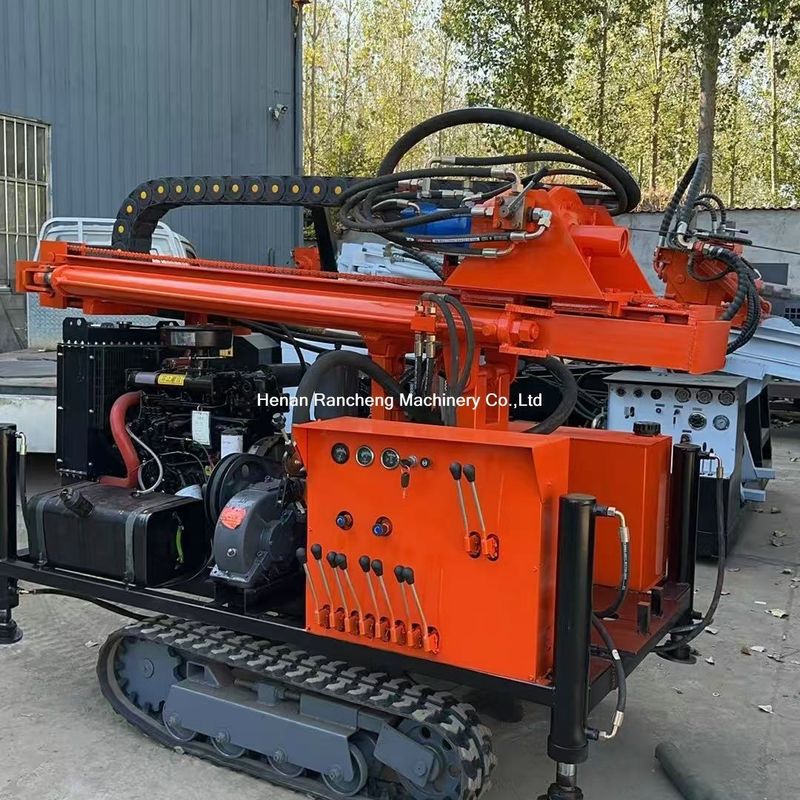

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque

Product Description

Name: 200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200C
Price: 7,500.00 USD
Availability: InStock

The RCS200C is a compact water well drill rig equipped with a superior hydraulic propulsion system. This system provides stable torque to the drill string, reducing energy loss and enabling more precise drilling control. It features dual-mode operation with a mud pump and air compressor, offering flexible options for air, foam, or mud circulation to suit different formation types. Whether rotary or percussive drilling, this rig efficiently operates in a wide range of geological conditions, from soft soil and gravel to hard rock, with a drilling depth range of 0 to 200 meters. Its fully hydraulic configuration simplifies power transmission, reduces points of failure, and helps maintain stable progress on site.

Weighing approximately 2,000 kg and mounted on a rubber-tracked chassis, the RCS200C is easily towed by a standard pickup truck, eliminating the need for large transport vehicles and reducing logistics costs. Its diesel engine provides off-grid power, enabling operation in remote mountainous areas with limited electricity supply. Its size and maneuverability make it ideal for sites with narrow or restricted access. The drilling rig is widely used in water supply projects, agricultural irrigation wells, shallow geothermal facilities, exploration sampling wells, environmental monitoring wells and small-diameter micropile/foundation projects, providing versatile solutions for various site conditions.

Technical data

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong


200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 0

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 1

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 2

200m Small Crawler Mounted Water Well Drill Rig 1000-2000N.M Torque 3
