Name: 200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200C Máquina portátil de perforación de pozos de agua
Price: 3,130.00 USD
Availability: InStock

Hogar > productos > Máquina portátil para perforar pozos de agua >

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

200m small water well drilling rig

portable water well drilling machine with 2000KG capacity

rock drilling rig for water wells

Lugar de origen:

PORCELANA

Nombre de la marca:

RanCheng

Certificación:

CE, ISO 9001:2000

Número de modelo:

RCS200C Máquina portátil de perforación de pozos de agua

Éntrenos en contacto con

Petición Una cita

Detalles del producto

Nombre:

Plataforma de perforación de pozo de agua portátil RCS200C

Perforar:

200 m

Diámetro del taladro (mm):

Dentro del Ø 450 mm

Capacidad de alojamiento (kg):

2000 kg

Resaltar:

200m small water well drilling rig

portable water well drilling machine with 2000KG capacity

rock drilling rig for water wells

Condiciones de pago y envío

Cantidad de orden mínima

Precio

USD2980-USD3280

Detalles de empaquetado

Envío estándar

Tiempo de entrega

10-15 días hábiles

Condiciones de pago

T/t, unión occidental

Capacidad de la fuente

100sets por mes

Productos relacionados

El video

Profundidad máxima 200m RCS200C Rápido de caucho Pequeña máquina de perforación de pozos de agua

Consiga el mejor precio

El video

Máquina de perforación hidráulica de agua para pozos de riego de granjas de 150 metros de profundidad

Consiga el mejor precio

El video

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

Consiga el mejor precio

El video

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Consiga el mejor precio

Éntrenos en contacto con

Contacto ahora

Descripción del producto

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Product Description

With a drilling depth of up to 200 meters and a diameter range of 100 to 450 mm, this drill can easily handle a wide range of projects. Equipped with a powerful 22-horsepower diesel engine, the RCS200C delivers reliable performance in a variety of geological formations, allowing you to complete your work efficiently.

In short, the RCS200C crawler-mounted portable drill is designed for users who value efficiency, reliability, and ease of use. Whether you're drilling for agriculture or providing clean water for your home, this drill delivers exceptional results. Explore the unique features of the RCS200C and join the ranks of satisfied users who have made it their favorite. Get ready to take your water well drilling projects to the next level!

Product Specifications

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong

Applications

This water well drilling rig is primarily used for geothermal drilling, agricultural irrigation, and for drilling holes in courtyards, gardens, and water wells. It is suitable for drilling holes with diameters ranging from 70-450mm and a maximum depth of 200m. It can also be used for smaller structural supports in farms or factories, with a drilling diameter of up to 450mm. It is suitable for various strata, including sand, soil, clay, and soft rock.

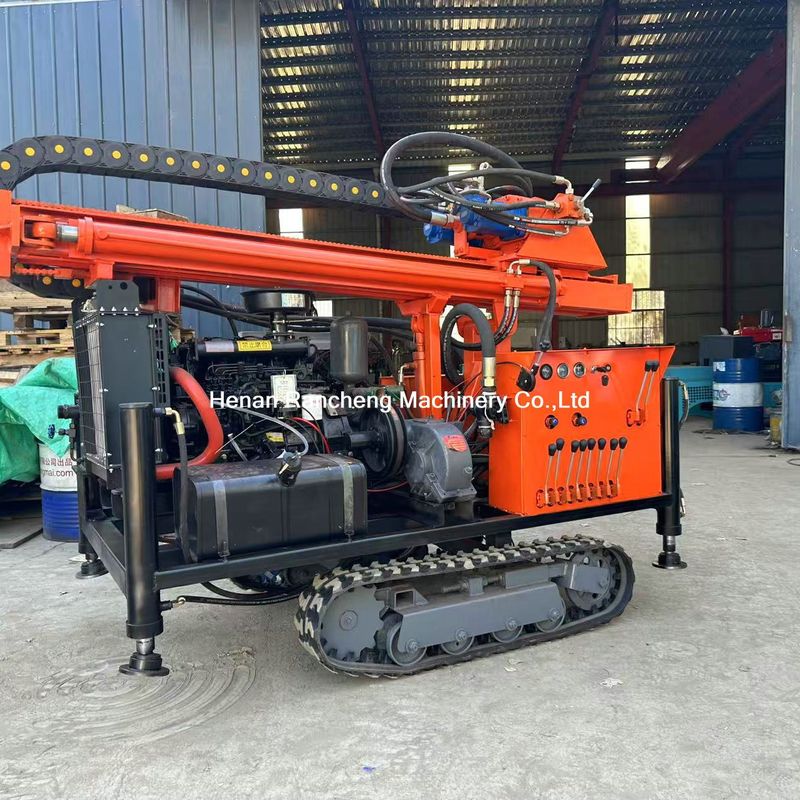

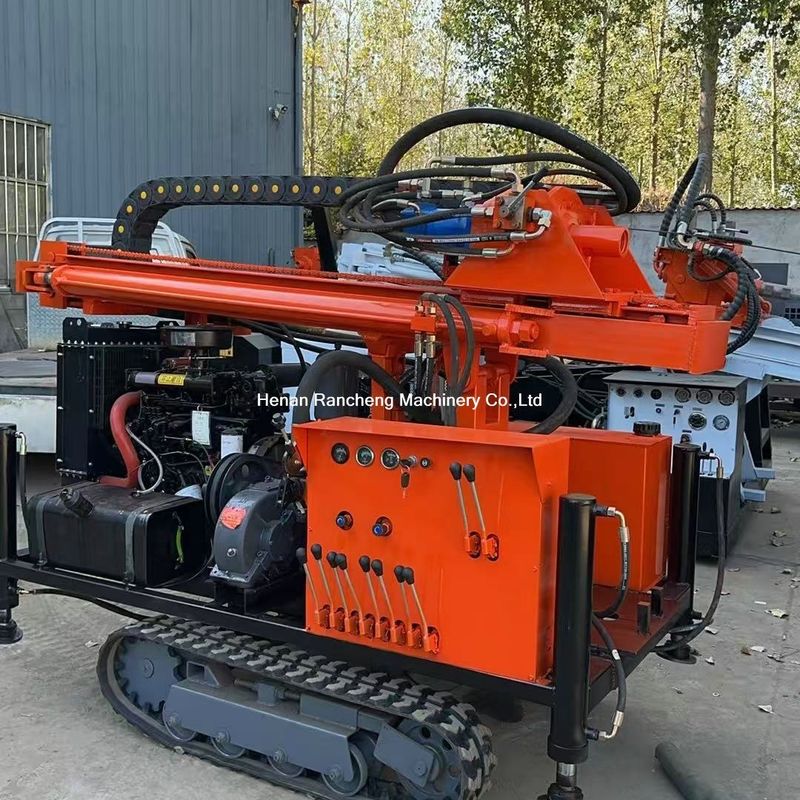

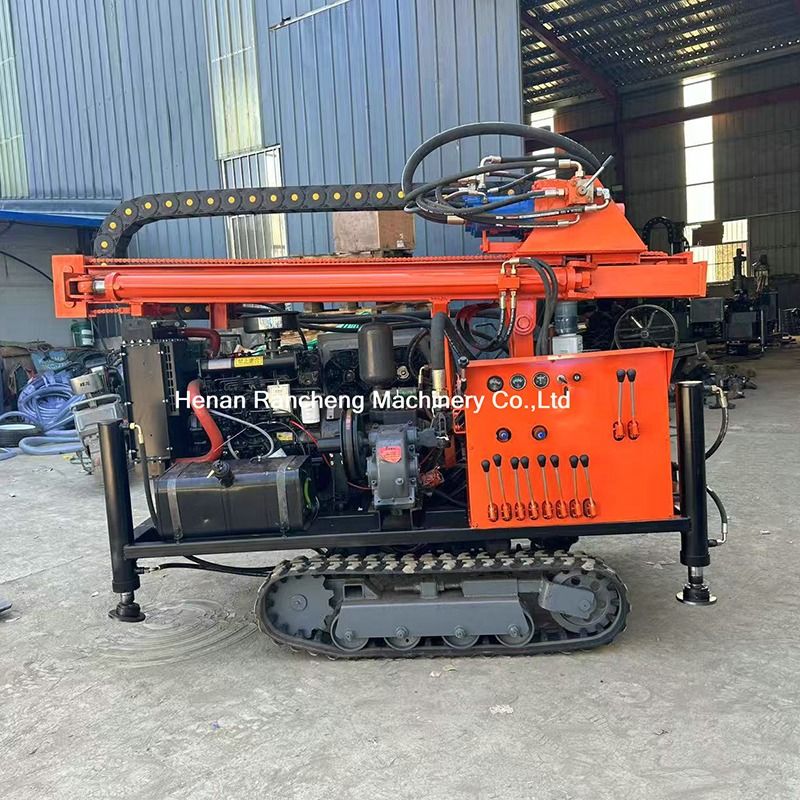

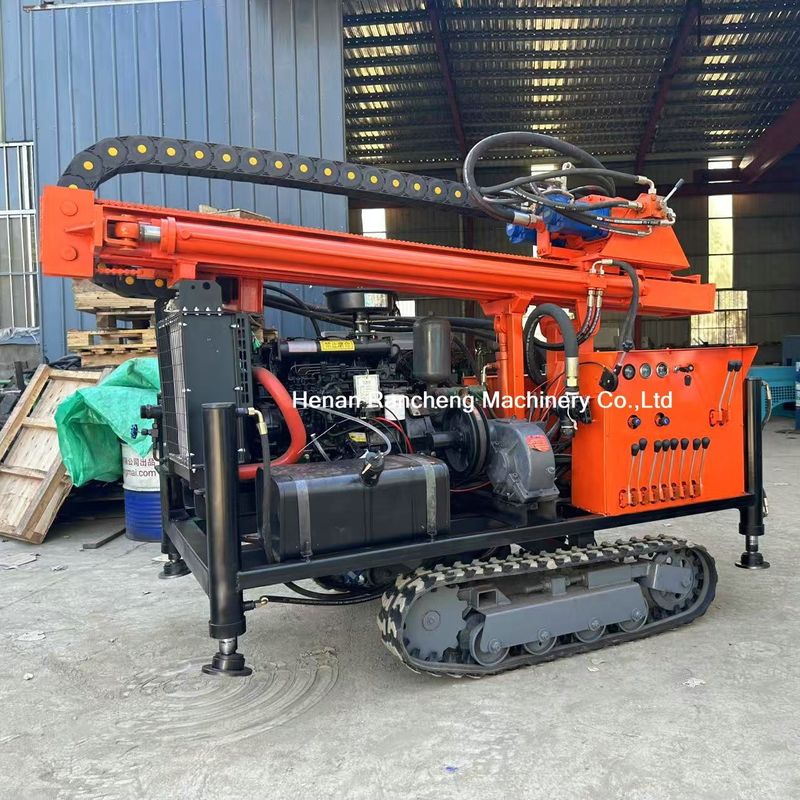

Product Image

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 0

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 1

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 2

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity 3
