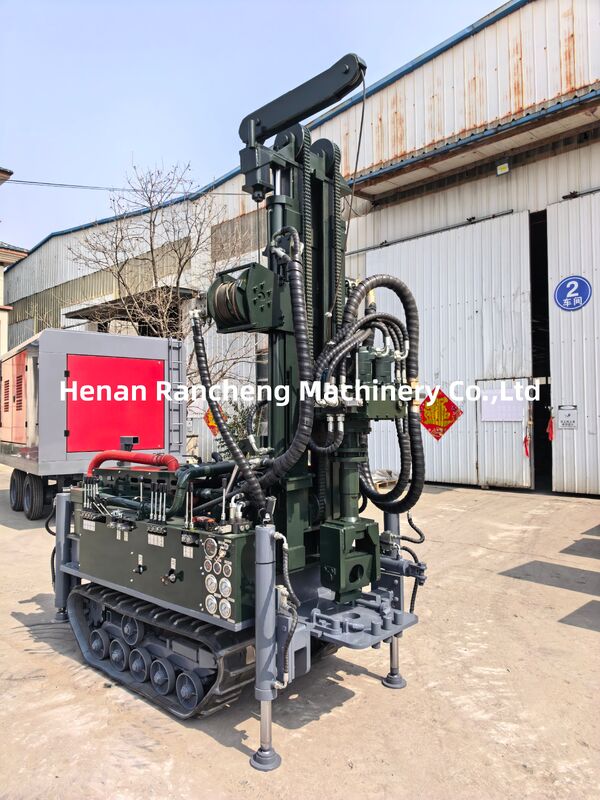

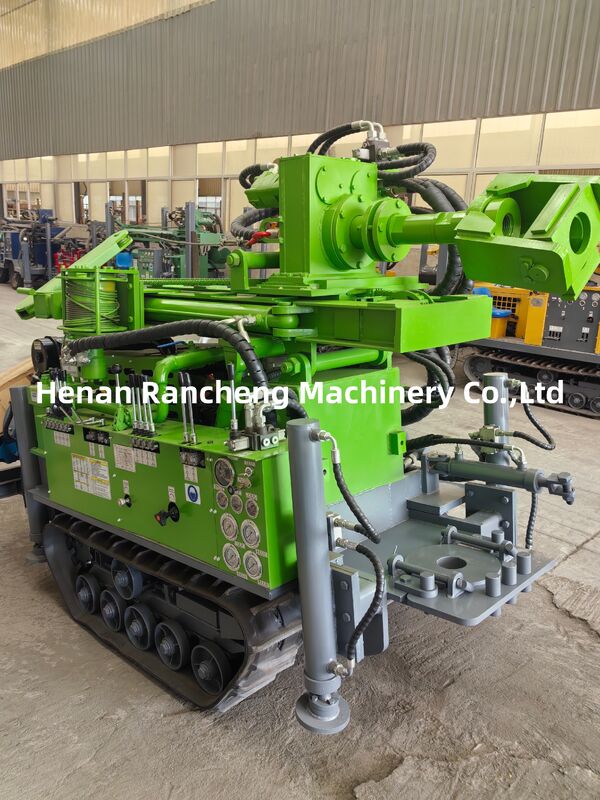

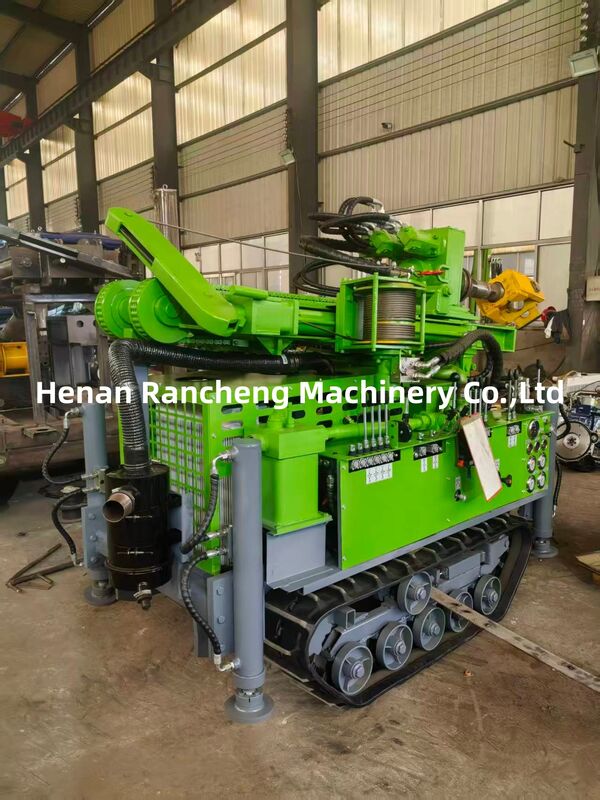

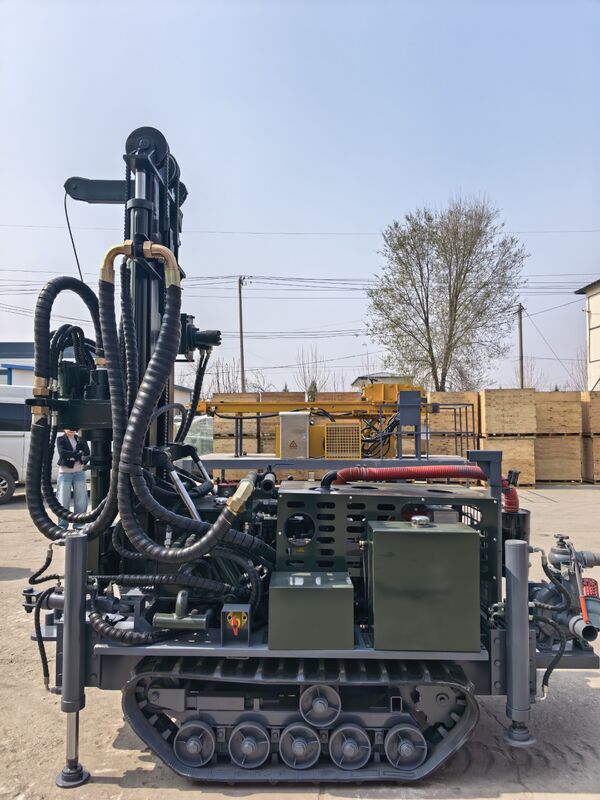

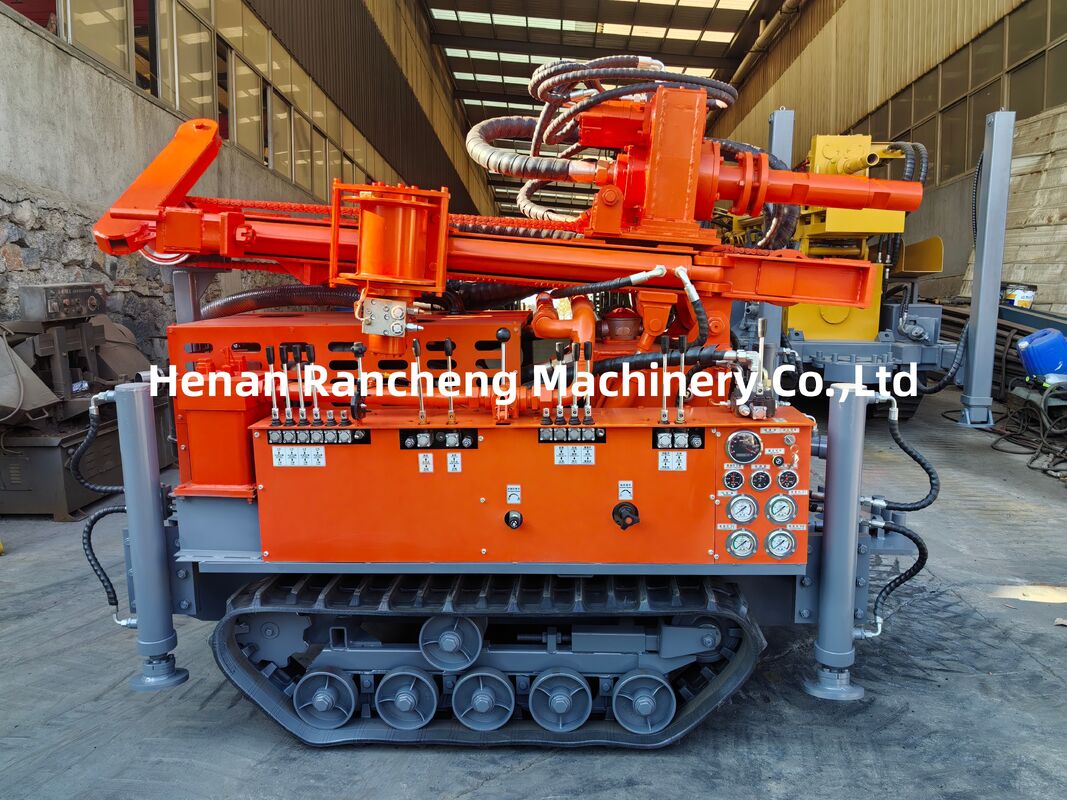

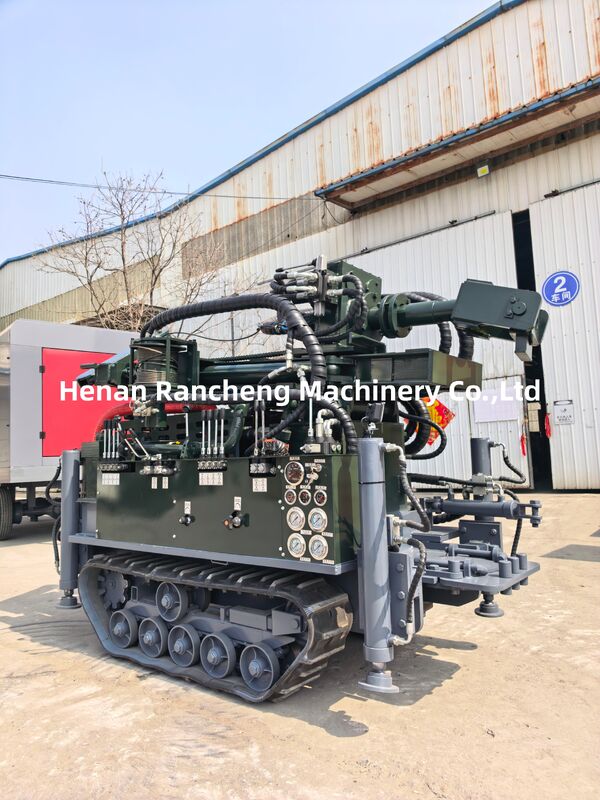

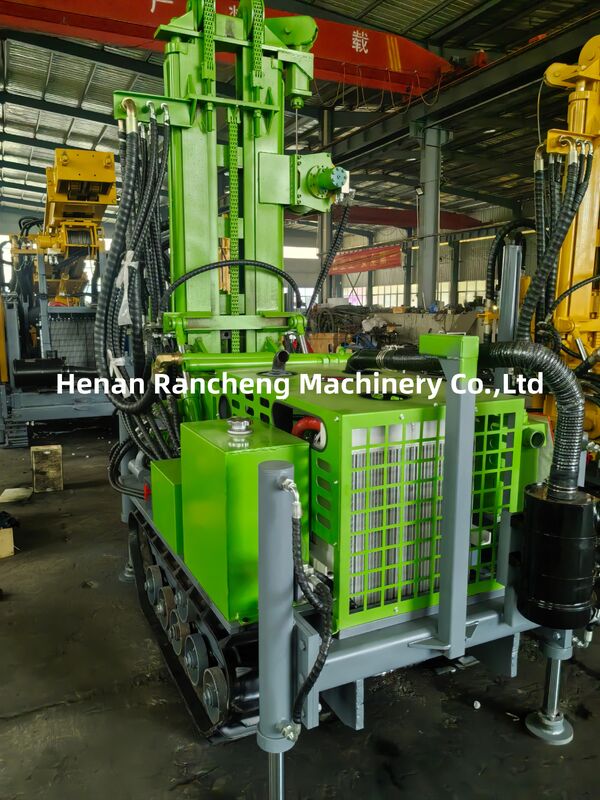

RCF150S Crawler Mounted Rotary Water Well Drilling Rig with 150 Meter Drilling Depth and 42KW Diesel Engine

RCF150S mini water well drilling rig is our development products. It is both DTH drilling and mud pump rotary drilling, it can drill hard rock with fast drilling speed. This water drilling machine is four high hydraulic legs, very convenient to transport. This machine adopt advanced hydraulic technology, low consumption, large rotary torque, convenient operating. This water drilling rig is widely used for deep well drilling, farm irrigation well drilling, geothermal well drilling, borehole drilling, mini pile drilling etc projects.

RCF150S mini water drilling machine is very powerful, it can drill max 150m depth. This small water drilling machine use very powerful diesel engine, it is 42KW Yunnei engine. This drilling water machine max torque of rotary head is 4600N.m, the lifting force is 15T. This water drilling machine use 2m length drilling rod, it is convenient to load and unload drilling rod. This mini water drilling rig is made by high quality materials, with compact design, keeps our drilling rigs more efficiency, more economic. This small well drilling machine passed CE certificate, it is more popular and well received in Europe!

• Small size, light weight, Compact structure
• Weight is only 2300KGS, the machine size is 2300X1200X1900mm
• DTH water drilling rig, two motors rotary head, top driving, drill with both mud pump and air compressor
• Big powerful, it use 42KW Yunnei engine, it can drill max 150m depth, 90-300mm borehole
• Rubber crawler mounted type, easy to move
• Full hydraulic legs, very convenient to transport by truck
• Full hydraulic operating system, improving the performance and working efficiency.
• Mini size water drilling machine is very suitable for courtyard, narrow space for water drilling operations.
